What are the 4 types of electrical boxes?
Types of Electrical Boxes
- Handy Box: Mounts on the surface of a wall. …
- Junction Box: Wires connect only to each other, never to a switch, receptacle or fixture. …
- New Work Box: Installed as part of a new construction project. …
- Old Work Box: Also called a “remodeling box.” Installed on drywall after it has been hung.
Can you use metal boxes in residential?
Metal boxes’ strength comes in handy when mounting especially heavy items like ceiling fans. Metal boxes can also be used with Romex or NM wiring if desired, though special precautions must be taken to ensure proper grounding.
Can you use blue electrical boxes outside?
Plastic junction boxes cannot be used with metal conduit, which is required in various installations, such as outdoors or when wiring runs are exposed (not concealed inside wall or ceiling cavities).

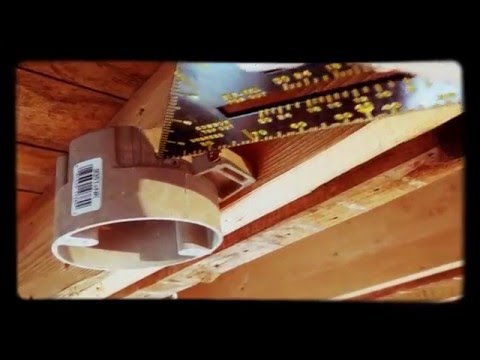

How do you knock out a hole in fiberglass box?
How do you remove knockouts from plastic electrical boxes?
How to Remove Electrical Knockouts on a Plastic Enclosure
- Place a flat-head screwdriver into the slot of the electrical box knockout that is to be removed. …
- Hit or tap the end of the screwdriver to remove the knockout and dislodge the rest of the knockout by hand if needed.
What are the common electrical boxes?
What To Know About The Various Types Of Electrical Boxes
- Plastic and metal electrical boxes. Most boxes are either made of plastic or metal. …
- Rectangular boxes. …
- Two-gang, three-gang, and four-gang boxes. …
- Round pan boxes. …
- Junction boxes. …
- Round and octagon boxes. …
- Ceiling fan-rated boxes.
What is the main electrical box called?
Electrical panels go by many names: breaker panels, load centers, service panels or breaker boxes. It’s the steel box that holds your home’s circuit breakers. When needed, the circuit breakers turn off or “trip” the circuits that carry power throughout your home.
What is a standard electrical box?
Standard rectangular boxes, also known as “single-gang” or “one-gang” boxes, are typically used for single light fixture switches and outlet receptacles. They are generally 2 x 3 inches in size, with depths ranging from 1 1/2 inches to 3 1/2 inches.
Why are there no plastic electrical boxes?
Though PVC can melt when overheated, it does not conduct electricity like metal does. Use plastic boxes when: There are non-metallic (NM) cables leading in or out of the box. Metal-sheathed wiring relies on bonding with the metal electric box for grounding and should not be used in plastic boxes.
Do you need to ground an outlet in a metal box?
yes, the box should be grounded. It should not be grounded through the devices, but by means of a machine screw, clip, or through metal conduit.
Can I replace metal electrical box with plastic?
Homeowners can replace their metal electrical box with plastic if non-metallic cables come in and out of the box. However, the downside of plastic electrical boxes is that they distort or crack under stress, and PVC can melt due to overheating.
How much weight can a blue electrical box hold?
These boxes will be permitted to support a minimum weight of 50 pounds.
How many outlets can be on a 15 amp circuit?
Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.
How many receptacles can be on a 20 amp circuit?
The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.
Are fiberglass electrical boxes OK?
Fiberglass has many attributes that make it great for electrical enclosures. First, it is relatively inexpensive. Fiberglass is available at a fraction of the price of any metals. Second, it is remarkably resilient.
What size are knockouts on electrical boxes?
Stimpson offers Electrical Knockout Plugs in six basic sizes: 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, and 2”. Variations for special situations are also available.
How do you get rid of a punch out?
