How does a drone ESC work?

How does a drone ESC work?

Electronic speed controllers (ESCs) are devices that allow drone flight controllers to control and adjust the speed of the aircraft’s electric motors. A signal from the flight controller causes the ESC to raise or lower the voltage to the motor as required, thus changing the speed of the propeller.

How do you wire a drone ESC?

Can we make drone without ESC?

The ESC is responsible for controlling each motor speed, and therefore, the most common drone architecture involves the dedicated use of an ESC for each motor. All ESCs must be able to communicate with each other, either directly or indirectly, through the flight controller, so as to have easy control of the drone.

How many ESC does a drone need?

Given that each brushless motor requires an ESC, a quadcopter will require 4 ESCs. The ESC takes the signal from the flight controller and power from the battery and makes the brushless motor spin.

How many amps is an ESC?

The ratings on an esc and battery are usualy a “max” value. If we believe the numbers then your cell is safe up to 44 amps and the esc is safe up to 35 or 60 amps.

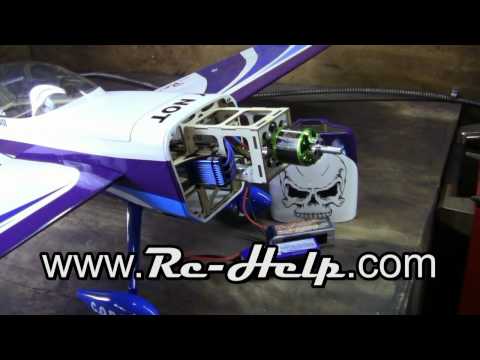

How do you match a motor and ESC?

How many wires does an ESC have?

The ESC has two wires coming from a battery, and then two wires going to the DC brushed motor. These can be any voltage that maximizes the motor’s revolutions per minute (RPM).

How do you connect the brushless motor ESC?

What is NC on a ESC?

It usually stands for Not Connected.

How much rpm motor is required for drone?

Typical rotational speeds for the propellers of small multirotor drones are between 4000 and 6000 rpm, and they are typically near 5000 rpm in flight [40] .

What is a 4 in 1 ESC?

A 4 in 1 brushless ESC allows you to move ESCs from the arms of your quadcopter into the centre stack with your flight controller. Compact builds can benefit, as they make wiring a lot simpler, removing the need for a power distribution board and separate BEC in some cases.

How can I make my drone more powerful?

5 Ways to Make Your Drone More Powerful

1. Install More Efficient Propellers. Propellers play a very crucial part when it comes to making a drone fly. …
2. Upgrade Your Battery. …
3. Practice Good Battery Care. …
4. Remove Unnecessary Weight. …
5. Install More Powerful Motors.

How is ESC size calculated?

To arrive at the size of ESC you need, when you know how many cells in series, divide the maximum wattage of your chosen motor by the voltage of your power pack. This will give you the current (amps) that your ESC will have to handle.

How do I choose the right ESC?

Now, we will learn all these factors one by one,

1. Current Rating. The first thing to consider when selecting an ESC is the current rating or ampere rating. …
2. Input Voltage Rating. …
3. Weight and Size. …
4. ESC Firmware. …
5. With or Without BEC. …
6. Connection of ESC with motor. …
7. ESC Protocols. …
8. ESC Processors.

What ESC to use with what motor?

The ESC can be selected based on the voltage and the peak current rating of the motor. A simple rule is to choose an ESC with atleast 5A more capacity than the peak rating of the motor, since you may be powering servos, receiver and other accessories from the ESC. Remember to always round up.

Is a higher amp ESC better?

A high amp esc will usually have better internals than a lower amp esc. Keep tthe questions coming, you do not learn without asking! Amp rating generally means you can run a more aggressive motor (mod motors) with higher amperage.

How many amps does a FPV drone use?

Most 5″ FPV quads use 30 or 40amp speed controllers on each motor. These would melt and catch fire at 150Amps unless it’s only for a tiny fraction of a second. Motors, wires and battery plugs have a fair bit of mass to them, and can absorb the heat from being overloaded for a few seconds or even a few minutes.

Can I use different ESC on quadcopter?

Can we use a different brand ESC in that quadcopter or multicopter? The answer is, it might work, but not recommended. If you are desperate to fly, then by all means, you can try mixing any combination of ESCs and props that have somewhat similar characteristics.
