How is a bulk carrier loaded?

How is a bulk carrier loaded?

During the loading operation, load spouts extend from the grain elevator into the cargo holds to load the grain evenly across the vessel. At destination in Montreal, unloading marine towers equipped with bucket elevators scoop up the grain, which is then discharged into the grain elevator.

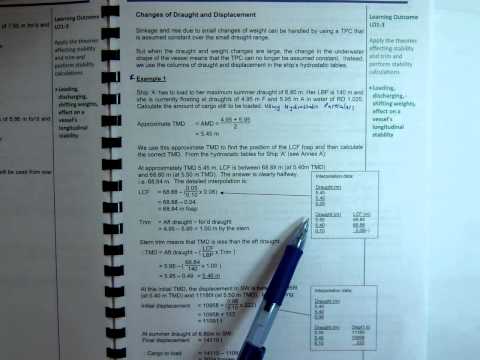

How do you calculate cargo load on a ship?

What is stowage plan for bulk cargo?

The stowage plan required the ship to load bagged cement onto the tanktop in all holds and then to load general cargo on top of cement in holds. The vehicles were loaded directly on the bagged cement without any dunnage.

What is cargo loading/unloading plan?

The loading/unloading plan should indicate any allowances for cargo stoppage (which may be necessary to allow the ship to deballast when the loading rate is high), shifting ship, bunkering, draught checks and cargo trimming.

How long does it take to load a bulk carrier?

A study of mini-bulk carriers found that it takes, on average, twice as much time to unload a ship as it does to load it. A mini-bulk carrier spends 55 hours at a time in port, compared to 35 hours for a lumber carrier of similar size.

What are the guidelines before loading bulk cargoes?

How to prepare cargo holds prior loading

• The compartment should be swept clean, and all traces of the previous cargo removed. …
• Bilge areas should be cleaned and all ‘bilge suctions’ seen to be working satisfactorily. …
• The fire/smoke detection system should be tested and seen to function correctly.

What is API in cargo calculation?

The American Petroleum Institute gravity, or API gravity, is a measure of how heavy or light a petroleum liquid is compared to water: if its API gravity is greater than 10, it is lighter and floats on water; if less than 10, it is heavier and sinks.

What is WCF and VCF?

In this case, we need to get the volume correction factor (VCF) to convert the volume at the observed temperature to the standard volume which is volume at 15 Deg C or Volume at 60 F respectively. We then need to apply the weight correction factor (WCF) to convert the standard volume to weight.

How is GSV calculated?

Gross Weight In Vacuo (Mass) = Gross Standard Volume * Density @ 15oC (Vacuo). (Gross Weight in in Vacuo = GSV * Density @ 15oC (Vacuo)

What is cargo plan for loading?

What is the cargo plan? The cargo plan is a document prepared jointly between shipowners and shippers so that all parties involved in loading a ship at a port terminal are in agreement on how to store that cargo.

How do you make a cargo plan?

The cargo plan should include relevant details of cargoes, i.e. total quantity, description of packages, bales, pallets, weights, ports of discharge, etc. The ports of discharge are normally ‘highlighted’ in specific colours, reducing the likelihood of a parcel of cargo being over carried to the next port.

What are to be checked before cargo loading?

1. Plan and Monitor Loading and Discharging of Cargo. …
2. Have Knowledge of IMDG Containers Loaded Onboard. …
3. Handle Reefer Containers With Care. …
4. Check Lashings Of Out of Gauge Cargo (OOG) …
5. Have Proper Visual Inspection of Ship’s Draught. …
6. Check Ship’s Ballast and List. …
7. Check Lashings Thoroughly.

What is a loading plan?

All of the individually prepared documents which, taken together, present in detail all instructions for the arrangement of personnel, and the loading of equipment for one or more units or other special grouping of personnel or material moving by highway, water, rail, or air transportation.

What is block loading in bulk carrier?

A block hold loading condition refers to the stowage of cargo in a block of two or more adjoining cargo holds with the cargo holds adjacent to the block of loaded cargo holds empty, see figure 15. In many cases, block hold loading is adopted when the ship is partly loaded.

How do bulk carriers unload?

The cargo is unloaded using a system of conveyors built into the ship. The cargo holds are “hopper-sloped”, or slanted on their sides, so that the cargo will flow down through gates located at the bottom of the holds.

How long does it take to load 20000 containers?

It takes 3,000 people working three days in shifts around the clock to load and unload a giant ship with capacity for 20,000 containers when it stops at one of the world’s biggest ports.

How much fuel does a bulk carrier use?

Most ship engines have been designed for top speeds ranging between 20 and 25 knots per hour, which is between 23 and 28 miles per hour. A Panamax container ship can consume 63,000 gallons of marine fuel per day at that speed. Fuel use drops sharply as speeds decrease.

How much does it cost to unload a container ship?

It would take only a few hours to unload a ship as opposed to days. Typically, the cost of hand-loading a ship would be about $5.86 per ton.
