What does an electronic speed controller do?

What does an electronic speed controller do?

An electronic speed control (ESC) is an electronic circuit that controls and regulates the speed of an electric motor. It may also provide reversing of the motor and dynamic braking. Miniature electronic speed controls are used in electrically powered radio controlled models.

What are the different types of ESC?

Types of ESC. There are two types of Electric Motor that are used to power RC Cars and Trucks, Brushed and Brushless. Almost all ESC’s are designed to work with only one type of motor, either Brushed or Brushless. The first thing to notice is that it has two connections.

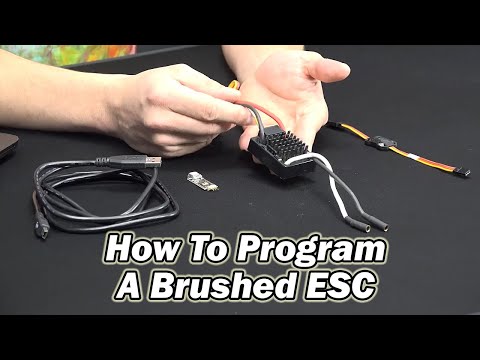

How do I program my electronic speed controller?

What are the advantages of electronic speed control of a motor?

Drives provide precise electrical motor control, enabling motor speeds to be ramped up and down or maintained at a required speed. The obvious benefit is the motor and drive use only the require amount of energy, rather than having a motor run at a fixed speed.

Do you need a speed controller?

To control a large motor’s speed, you need a motor controller. There are a range of motor controllers available on the market to deal with motors up to about 50A, but there are only a small handful capable of dealing with very high current electric motors (over 50A).

Do you need an ESC for brushed motor?

Brushed and brushless motors both require escs, but an esc is specific to brushed or brushless. IE, you have to buy the right type. There can be a few factors in choosing the correct esc, but the biggest factor is getting a current rating somewhat larger than the motor will draw.

How do I choose a speed controller?

What is the best ESC?

Top 5 ESCs for FPV quadcopters

• Wraith32 – BLHeli_32.
• RacerStar 30A BLHeli_S(best for budget builds)
• Sunrise Cicada 30A BLHeli_S.
• KISS 24A.
• RacerStar 30A 4-in-1 BLHeli_S.

What ESC do I need?

The ESC can be selected based on the voltage and the peak current rating of the motor. A simple rule is to choose an ESC with atleast 5A more capacity than the peak rating of the motor, since you may be powering servos, receiver and other accessories from the ESC. Remember to always round up.

How do I know if my ESC is working?

Do I need an ESC programming card?

Most ESCs have default settings that will work just fine out of the package. Most can be programmed via the transmitter, but that’s a pain and you need the manual if you can download it. So you don’t NEED a program card. If you plug it in and it works, forget about it.

How do you program ESC without card?

Why do you need a speed controller?

Using a speed controller to lower the speed of the motor to meet the demands of a system, in place of constricting the flow from the pump or fan whilst running the motor at full speed will reduce the power consumption.

What is the disadvantages of VFD?

Limited motor lead length. Cable failures. Motor bearing failures. High voltage spikes.

Does the ESC power the receiver?

Most modern-day electric-powered radio control vehicles, whether airplanes, boats, or cars, have something built into their electronic speed controls (ESCs) that shunts power from the main battery to the receiver to power the radio system.

How do I slow down my motor speed?

Most DC motors can be slowed down by reducing the supply level of power, Volts, lower volts and resulting less amps, will create less electrical field and will slow motor down. For more gradual speed control there are electronic solutions that are called PWM (Pulse Width Modulation) controllers or Mosfet H bridges…

How do you reduce the speed of an electric motor?

How do you increase motor speed?

Magnetic flux – By decreasing the flux, the speed of the motor can be increased. The flux can be changed by changing the current with a shunt field rheostat. Resistance of the armature circuit – By decreasing the resistance, there is increase in the armature current which causes a larger torque to be developed.
