What part of a shipping container is structural?

What part of a shipping container is structural?

The main structural components are : Roof. Side Walls. Floor.

Are shipping container walls structural?

Container Walls Even though most of the container load is carried through the corner castings, the walls still carry some weight and hold the shape of the container – making them very important to the structural integrity.

What is the structural integrity of a shipping container?

Structural Integrity Shipping/Cargo containers are built to be very sturdy. A steel frame is welded together, corrugated Corten steel is placed on the outside of the frame providing an exterior that can withstand everything thrown at it; wood flooring is then treated and bolted down inside.

What foundations do you need for a shipping container?

The four main foundation types which can be used with container homes are pier, pile, slab and strip. There are other types of foundations but these are the most commonly used with container homes.

How do you reinforce a shipping container wall?

To reinforce underground containers, weld steel posts vertically across both lengths of the interior. Space the beams two to three feet apart. Weld steel posts along the inner top of the container, aligning the upper posts with the side posts.

What is the thickness of a shipping container wall?

The walls on small shipping containers are usually made with 14 gauge corrugated sheet steel panels. The thickness is 0.075 inches, and these panels are welded to the rest of the structure. The frame, pillars, and rails are 7 gauge tubular steel, which is considerably thicker at 0.187 inches.

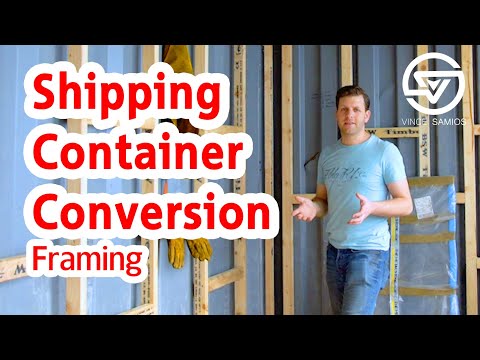

How do you frame a shipping container?

Does a shipping container need to be supported in the middle?

Less material is needed as you only need to build support for the four corners of the container, however supporting the middle points on the long side of the container can provide extra stability.

Can you stack a 20ft container on a 40ft?

The 20-ft container will not be as secure as the 40-ft, especially the higher it is on the stack. It is best to put two 20-ft containers below and then put a 40-ft unit on top of them to provide added security on each corner.

What are the strongest shipping containers?

Freight containers are the strongest stationary structure in the world to withstand hurricanes, tornados, typhoons, and even earthquakes for many reasons. They are made of a special steel called “Corten Steel” which won’t rust and is extremely adaptive to the most efficient Eco insulation.

How do you attach studs to a shipping container?

What makes shipping containers stronger?

Containers are made from weathering steel or COR-TEN steel (U.S. Steel trademarked name). COR-TEN is a group of steels developed to resist atmospheric corrosion better than other steels. Due to its ability to handle the weather it is often used for many outdoor structures, like building facades and bridges.

Should I put my shipping container on blocks?

To Block Container blocking can be helpful in situations where you have uneven ground or it is a low-lying area that can be in a puddle after rains. Blocking will even out a container to make it more level.

How do you prepare the ground for a shipping container?

This involves:

1. Checking the surrounding area to ensure that it is clear of debris and potential obstacles. …
2. Inspecting the site area to see if it’s compact. …
3. Surveying the area for proper sloping. …
4. Considering Accessibility to the Container and Proximity to Important Structures and Utilities. …
5. Having space for growth.

Why you shouldn’t bury a shipping container?

A shipping container is extremely sturdy but it was never designed to be buried. It’s certainly not strong enough to withstand the constant pressure of dirt pushing on the sides or the roof. If the roof or sides cave in slightly, you could face serious problems, including cracks, rust, rodents and water getting in.

How do I support a shipping container?

Make sure your supports will be able to take the weight of the container plus the weight of your cargo without any risk of moving or settling.

1. Pairs of bricks, cinder blocks.
2. heavy duty paving slabs or cement blocks.
3. 4×4, 8×8, railroad ties are common supports used.

Can you partially bury a shipping container?

Although you can bury shipping containers underground, you must modify the structure or create a protective wall around the container to ensure it bears the weight of the surrounding soil layer.
