How does a CNC bar puller work?

How does a CNC bar puller work?

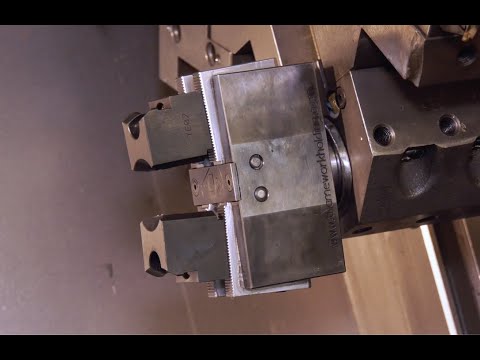

What is at bar puller?

Rather than pushing bars through the lathe’s spindle, a bar puller pulls the bar from the spindle, grips the bar and then moves it into the work zone. Once turning and part cutoff are completed on that section, the process repeats until the bar is consumed.

How do you program a puller bar?

In the program for each bar pull:

1. Machine the workpiece. …
2. Index to the bar puller station. …
3. Rapid the bar puller to its approach position. …
4. Engage the bar. …
5. Open the jaws. …
6. Advance the bar. …
7. Close the jaws. …
8. Disengage the bar.

What is a bar feeder?

A bar feeder or barfeed is an optional piece of support equipment that allows barstock to be automatically loaded into a CNC lathe, greatly increasing productivity. The feeder is attached to the headstock with a lathe adapter and filled with bars that are then moved through into the work area.

How do I set up Haas bar feeder?

What is bar capacity in CNC lathe?

Bar diameter directly affects the capacity of the bar feeder. Typical of most bar feed manufacturers, the majority of the 12-foot magazine bar feeders offered by CNC Indexing will hold about 23 bars at 3/8-inch diameter.

What is bar capacity in CNC machine?

The spindle bore or bar capacity determines the maximum diameter of a workpiece that can be mounted thru the head stock. The headstock is normally located on the left side of the lathe.

What is automatic bar feeder?

Automatic bar feeders raise productivity by letting lathes run unattended longer. More time in-cut means more machine capacity. Using a magazine-style automatic bar feeder for CNC lathe operations can even allow lights-out operation.

How do you change parameters in Haas?

If you need to change parameters, contact Haas or your dealer. Parameters are protected from being changed by Setting 7. The Settings page lists some parameters that the user may need to change during normal operation. These are simply called “Settings”.

Which component holds cutting tools on the CNC lathe?

The part of the machine tool that spins or rotates. On the mill, the spindle holds the cutting tool.
