What is a 5C collet used for?

What is a 5C collet used for?

5C collets are a popular standard for mill and lathe work. They are used to hold cylindrical stock up to 1” (25 mm) in diameter and offer superior concentricity to faster setup than 3-jaw chucks.

What size is a 5C collet?

5C Collets- Hardened and Ground Collets in round sizes are 1/16″ to 1-1/16″ in 1/64″ increments, or 3mm to 26mm in 1mm increments; 5c square and hex collet sizes are 1/8″ to 11/16″ in 1/16″ increments.

Why use a collet instead of a chuck?

High Speed Operation: Compared to three-jaw chucks, collet chucks hold up far better to the negative effects of centrifugal force. This allows collet chucks to run at higher speeds with consistent gripping force. Reduced Setup Times: A collet can be changed much faster than chuck jaws, and without boring.

What is chuck size in CNC machine?

GMT – CNC LATHE CHUCK Standard sizes available (3 jaw) 135mm, 165mm, 200mm, 250mm, 315mm, 400mm and 500mm. Two Jaw and 4 Jaw chucks with through bore are available on request.

See also  What should I put as my billing address?

How do you use a 5C collet chuck?

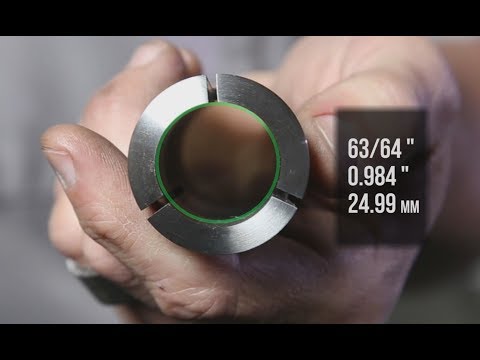

Part of a video titled What You Need to Know About the 5C Collet on Your CL-1 - YouTube

What are collets used for on a lathe?

Collets form a collar around a workpiece or tool. Generally manufactured from spring steel or other similar materials, they are usually made with a vertical kerf, a slit created by cutting a piece of material with a saw. Collets are used to hold a tool in a central position as it rotates.

What is the internal thread of a 5C collet?

It has a through-capacity of up to and including 1-1/16 inches, a back bearing diameter of 1-1/4 inches, and an overall length of 3-17/64 inches. The collet has external right-hand 1.238 inches x 20 threads for connecting to the draw bar, and no internal stop threads.

What is collet size?

On a wood router (a hand-held or table-mounted power tool used in woodworking), the collet is what holds the bit in place. In the U.S. it is generally for 0.25 or 0.5 inches (6.4 or 12.7 mm) bits, while in Europe bits are most commonly 6, 8 or 12 mm (0.24, 0.31 or 0.47 in).

What is an emergency collet?

Emergency collets have soft face with a pilot hole designed to be bored out to an exact size or shape.

Which type of job can be held by collet chuck?

Collet Chuck Collet chucks are used for holding bar stock in production work where quick setting and accurate centering are needed.

What is a lathe collet closer?

Collet closers are a fantastic tool for increasing productivity with lathes, grinders, and CNC rotary tables. That’s because they remove unnecessary repetitive steps from the process, streamlining your operations and improving your efficiency.

See also  Is VRL Logistics reliable?

How does a CNC lathe chuck work?

As the piston slides back and forth, the drawtube moves in unison, driving a wedge-shaped plunger within the chuck body. This plunger converts axial motion to radial motion, causing the jaws to open and close.

What chuck will fit my lathe?

Part of a video titled Wood Lathe Chuck Basics - How to Choose a Lathe Chuck - YouTube

Which type of chuck is used in a CNC lathe?

Hydraulic chuck is most widely used in CNC lathe, which needs to be combined with a high-speed rotary cylinder. The loosening and clamping operation is realized through the forward push and backward pull of the cylinder, with high rotation speed. This kind of chuck has high precision and stable clamping force.

How do you size a lathe chuck?

Measure the distance between both ends of the center of the chuck. Slide the tape measurement through the hole in the chuck and take a measurement of the chuck’s length. This measurement represents the maximum amount of material the lathe can accommodate. For example, this may measure 24 inches.

How does a collet chuck work?

While a chuck is tightened around an object, a collet utilizes clamping pressure by forming a collar around the object being held, holding it securely in place. This clamping force is typing applied through a tapered design that uses a sleeve and inner cylindrical surface.
