What is rotary table machine?

What is rotary table machine?

A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis.

How many degrees can a rotary table turn?

Advancing the crank using the outer ring rotates the table 1/28 of 1/72 of a rotation (0.1786 degrees).

What are the two main types of rotary table?

A rotary table can be both manually or computer numerical controlled. Certain types of rotary tables are designed to be used with indexing plates or dividing plates for specialized operations. A rotary table used together with one of these positioning plates is generally referred to as a dividing or indexing head.

How does a mill rotary table work?

What is CNC rotary table?

CNC Rotary Table is a precision work positioning device used in CNC machining centers to precisely position the component in the desired angle to do the multi-face operation in a single setup.

Who invented the rotary table?

2 Hydraulic Rotary Table. A 1930 patent application by inventor James C. Fortune describes a hydraulic feed mechanism that is run inside of and attached to a rotary table on a drilling rig.

What is the purpose of the hole in the center of a rotary table?

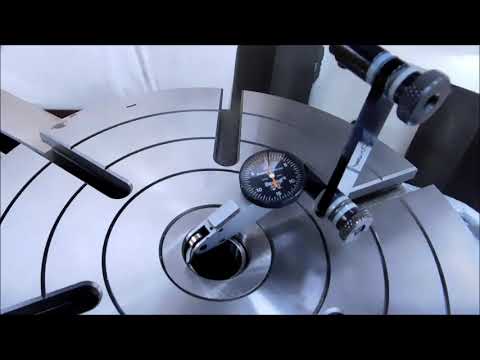

All rotary tables have a hole in the middle of the table. This is usually a parallel-sided hole but some, especially on smaller rotary tables it is tapered. This hole can be used to take spigots that can be used to align the rotary table or align the workpiece on the table.

Can a dividing head be used as a rotary table?

Is a rotary table the same as a dividing head – can a rotary table be converted to be used as a dividing head, and if so is just a case of getting the plates. No, not the same. Though they both do similar jobs. Some rotary tables can be converted to dividing heads.

How do you make a rotary table?

What is master bushing?

A device that fits into the rotary table to accommodate the slips and drive the kelly bushing so that the rotating motion of the rotary table can be transmitted to the kelly.

What is a Kelly on a drill rig?

1. n. [Drilling] A long square or hexagonal steel bar with a hole drilled through the middle for a fluid path. The kelly is used to transmit rotary motion from the rotary table or kelly bushing to the drillstring, while allowing the drillstring to be lowered or raised during rotation.

How does a rotary indexer work?

Rotary indexers convey and position components during the manufacturing process. The indexing unit rotates items to a specific position, either fixed or variable. These indexers are often used to place objects at exact points around a workspace so that they can be worked on, like a circular assembly line.

How do you use a rotary table on a lathe?

What is milling in engineering?

Milling is the process of machining using rotary cutters to remove material by advancing a cutter into a workpiece. This may be done varying direction on one or several axes, cutter head speed, and pressure.

Where are vertex rotary tables made?

Vertex rotary tables, Made in Taiwan, available in 5 sizes. They are accurate & smooth, producing your workpiece to exacting tolerance.

What does a dividing head do?

An indexing head, also known as a dividing head or spiral head, is a specialized tool that allows a workpiece to be circularly indexed; that is, easily and precisely rotated to preset angles or circular divisions.
