What is the engine power of ship?

What is the engine power of ship?

Usually, ships are powered by four or five generator sets (medium-speed, 500 revolutions per minute), fueled by diesel and creating 8-10 MW energy each. The power density of marine diesel medium-speed engine is 80 kilowatts per cubic meter.

How is engine effective power calculated?

Pe = k2 × n × pe (kW or bhp) where, n (rpm) = engine speed. Due to the friction in the thrust bearing, the shaft power is approx. 1% less than the effective engine power.

How do you calculate the effective power of a ship?

It is equal to the product of the resistance of a ship and the speed of the ship. This power is equal to the Brake Horsepower minus losses due to the gearbox, shafting and propeller, as well as interaction between the propeller and the hull.

See also  Is full size bed frame same as queen?

How can power be calculated on a piston engine?

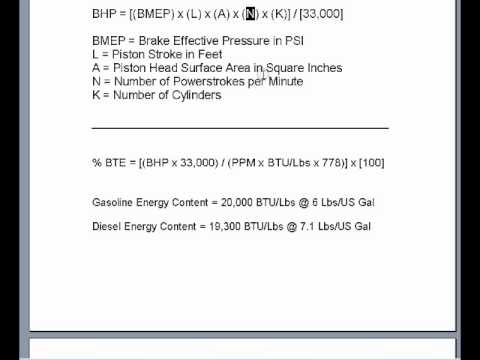

Part of a video titled Calculating Piston Engine True Power Output - YouTube

How is main engine bhp calculated?

Formula for calculations of Break horsepower is

  1. BHP = (Torque × RPM )/5252,where torque is lb -ft and n = revolution per min.
  2. BHP = BP /33000,where BP (in watt ) = Torque×2π×RPM (RPM in min. ) Where torque in the formula of BP is in lb -ft.
  3. BHP =BP (in Watt ) / 746 we get it in horse power ,since 1 HP = 746 watt.

What is bhp in vessel?

BHP: Break Horse Power. The amount of engine horsepower. Bow thrusters: Propeller in the front of the ship enabling it to turn sideways without forward momentum.

How do you calculate power from RPM?

The equation to calculate horsepower is simple: Horsepower = Torque x RPM / 5,252.

What is NCR and MCR?

MCR Maximum Continous Revolution of Main Engine. NCR Normal Continous Revolution.

What is effective power of a ship?

1 . Effective Power: The Power available at the output side of the engine i.e. at crankshaft flange of the engine which connects it with the flywheel and rest of the intermediate shaft. It can be said that this is the developed power by the engine available to the flywheel.

How do you calculate engine power without indicator cards?

Q – How to calculate the engine power without indicator cards? Power calculation without Indicator Diagram. The fuel pump index is used to find out the MEP from the nomogram graph. Again from the graph, the mep at a specific speed gives the engine bhp.

How is shaft power calculated?

Shaft Power is the mechanical power transmitted from one rotating element of a vehicle, ship, and all types of machinery to another is calculated using Shaft Power = 2*pi*Revolutions per Second*Torque. To calculate Shaft Power, you need Revolutions per Second (ṅ) & Torque (Mt).

See also  Why don't they build brick houses in USA?

How do you calculate the power of a cylinder?

The power produced by each cylinder unit is given by P*L*A*N *2* π /60 kw., where :

  1. P is the mean effective pressure given in KN/M. …
  2. L is the length of stroke given in.
  3. A is the area of bore of each cylinder given in M2.
  4. N IS the RPM measured from counter readings .

What is HP in engine?

Horsepower refers to the power an engine produces. It’s calculated through the power needed to move 550 pounds one foot in one second or by the power needs to move 33,000 pounds one foot in one minute. The power is gauged by the rate it takes to do the work.

How is engine torque calculated?

The formula for figuring out torque is torque = horsepower of the engine x 5252, which is then divided by the RPMs. The problem with torque, however, is that it is measured in two different places: directly from the engine and to the drive wheels.

How do you convert HP to BHP?

The formula used to convert hp to Brake Horsepower (bhp) is 1 Horsepower = 1.00000000056019 Brake Horsepower (bhp).

How is BHP measured?

Brake horsepower (bhp) is the power measured using a brake type (load) dynamometer at a specified location, such as the crankshaft, output shaft of the transmission, rear axle or rear wheels. In Europe, the DIN 70020 standard tests the engine fitted with all ancillaries and exhaust system as used in the car.

How is HP calculated?

The answer is simple: horsepower is calculated by multiplying the amount of force (in pounds) by the speed (in feet per second). So, let’s say your car’s engine can generate 200 pounds of force and move at a speed of 2 feet per second. The engine horsepower would be 400 (200 x 2).
